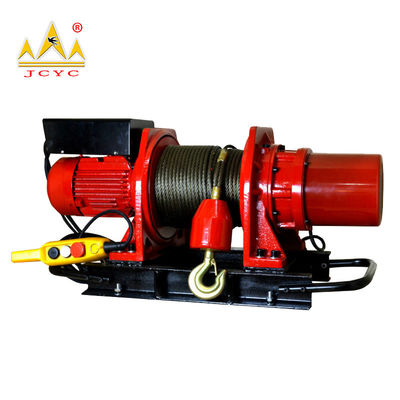

3ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions

prodotti

Paranco a catena protetto contro le esplosioni

3ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions

MOQ:	2 pezzi
prezzo:	Negoziabile
Imballaggio standard:	Cartone
Periodo di consegna:	15 giorni lavorativi
Metodo di pagamento:	L/C,T/T,Western Union
Capacità di fornitura:	50 pezzi/settimana

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

Cina

Marca

JCYC

Certificazione

Numero di modello

KDJ

Prodotto:

Verricello elettrico industriale compatto a fune metallica

Massimo. Cap.:

10TON

Fonte di energia:

Elettrico

Velocità nominale del cavo:

7-12 m/min

Tipo di operazione guidata:

telecomando

Capacità della corda:

può essere personalizzato

Colore:

Personalizzato

Temperatura operativa:

-25-40℃

Altezza di sollevamento massima:

100 metri

Motore:

7,5*6 CV

Descrizione del prodotto

3ton Electric Wire Rope Winch KDJ Electric Windlass for Industrial Lifting Solutions

Product Overview

Discover the pinnacle of industrial lifting with our KDJ Electric Winch 4.5KW. This electric wire rope winch is designed with an integrated gearbox for unparalleled flexibility and precision. Available in a variety of load capacities, it is the perfect solution for all your heavy-duty needs.

Key Features

Dual Wire Rope Fixing System: Features a dual wire rope fixing design with an additional PT locking screw on the drum, providing extra safety compared to conventional methods and effectively preventing wire rope slippage.
Convenient Drum Drive Design: Planetary gear shaft and drive plate directly drive the drum, allowing easy wire rope replacement or reverse rewinding with minimal effort.
Reliable Electromagnetic Brake: Equipped with DC electromagnetic brake and high-quality brake linings for dependable braking performance and extended service life. Automatically engages during power failure to securely hold loads.
High-Performance Hoisting Motor: Powered by E-Class insulated motor with high starting torque and low rotational inertia, suitable for frequent operation and continuous industrial use.
High-Precision, High-Strength Gearbox: Manufactured from high-ductility FCD-45 ductile cast iron with excellent toughness and crack resistance. Precision CNC machining ensures high accuracy and smooth operation.
Heat-Treated Transmission Gears: Premium alloy steel gears undergo precision heat treatment for outstanding strength, wear resistance, and long service life. Oil-free bearings improve durability and reduce maintenance.
High-Strength Planetary Gears: Each planetary gear is heat-treated and precision machined for maximum strength and efficiency. Supported by high-quality bearings for stable power transmission and high load capacity.
Integrated Mounting Frame: One-piece stamped steel mounting frame manufactured from high-quality steel plate. Robust integrated design allows flexible installation on suspension brackets, elevators, and steel beams.

Technical Specifications

Model	Load Rated (kg)	Speed (m/min)	Motor (hp×p)	Voltage (V)	Frequency (Hz)	Lifting Height (m)	Steel Cable (mm×m)	N.W. (kg)	Duty Cycle
KDJ-200E	200	10-15 12-18	0.8X4	1-phase 120v,220v	50/60	29	6×30	36	25% ED (150 times/h max. starting frequency)
KDJ-250E	250	10-15 12-18	1.0X4	50/60	50/60	29	6X30	40	25% ED (150 times/h max. starting frequency)
KDJ-300E	300	10-15 12-18	1.5X4	230v,240V	50/60	29	7X30	49	25% ED (150 times/h max. starting frequency)
KDJ-300E1	300	10-15	1.5X4		50	29	7X30	48
KDJ-500E1	500	12-18	3.0X4	3-phase 380v	50	58	9X60	136
KDJ-750E1	750	12-18	4.0X4	415v	50	58	9X60	149
KDJ-1000E1	1000	12-18	5.5X4	50	50	58	11×60	156
KDJ-2200E1	2200	7-12.5	7.5X4		50	97	16X100	450	25% ED (150 times/h max. starting frequency)
KDJ-3200E1	3200	6.3-8.8	7.5X6	3-phase	50	97	18X100	500	25% ED (150 times/h max. starting frequency)
KDJ-5000E1	5000	8.0-12	15X4	380v	50	192	22.4×200	1500
KDJ-10000E1	10000	7-11	30×4	415v	50	235	32×250	3000
